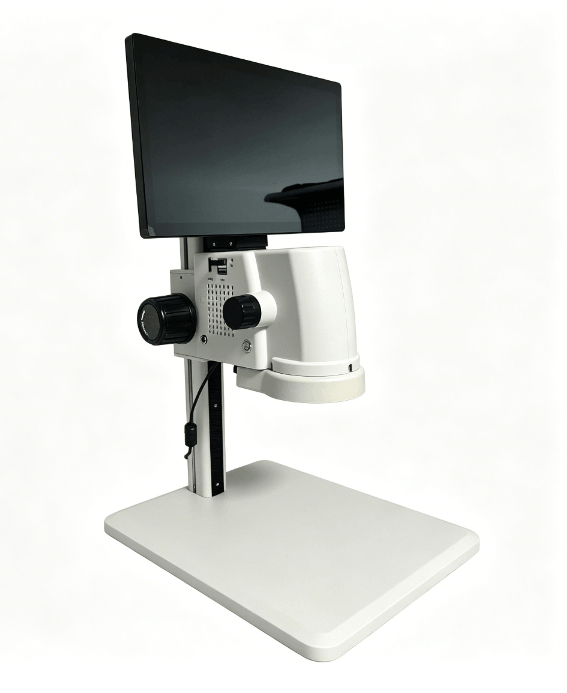

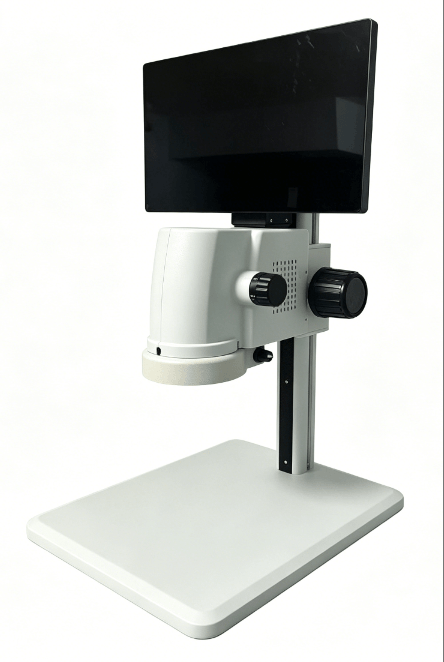

VDM11 LCD Digital Measuring Microscope

The VDM11 LCD Digital Microscope combines a continuous zoom optical system, SONY CMOS imaging sensor, Full HD display, and LED illumination in a compact all-in-one design. It is ideal for electronics inspection, PCB rework, quality control, precision assembly, and educational applications.

Featuring a 0.7X–4.5X continuous zoom system and Full HD digital imaging, the VDM11 delivers sharp, detailed images with accurate color reproduction. Users can view, capture, record, measure, and store images directly on the system, while HDMI output enables simultaneous display on an external monitor for inspection, training, and collaboration.

Features：

• 11.6" IPS Full HD Display with 1920 × 1080 resolution.
• Premium optics for sharp, true-color images.
• 0.7X–4.5X continuous zoom with 6.4:1 ratio.
• Up to 221X magnification with auxiliary objectives.
• 1/2.8" SONY CMOS sensor for clear imaging.
• Smooth Full HD real-time imaging at 60fps.
• Image capture, recording, measurement, and storage.
• HDMI output for dual-screen viewing.
• 56-LED ring light with adjustable brightness.
• 30–165 mm working distance with auxiliary objectives.

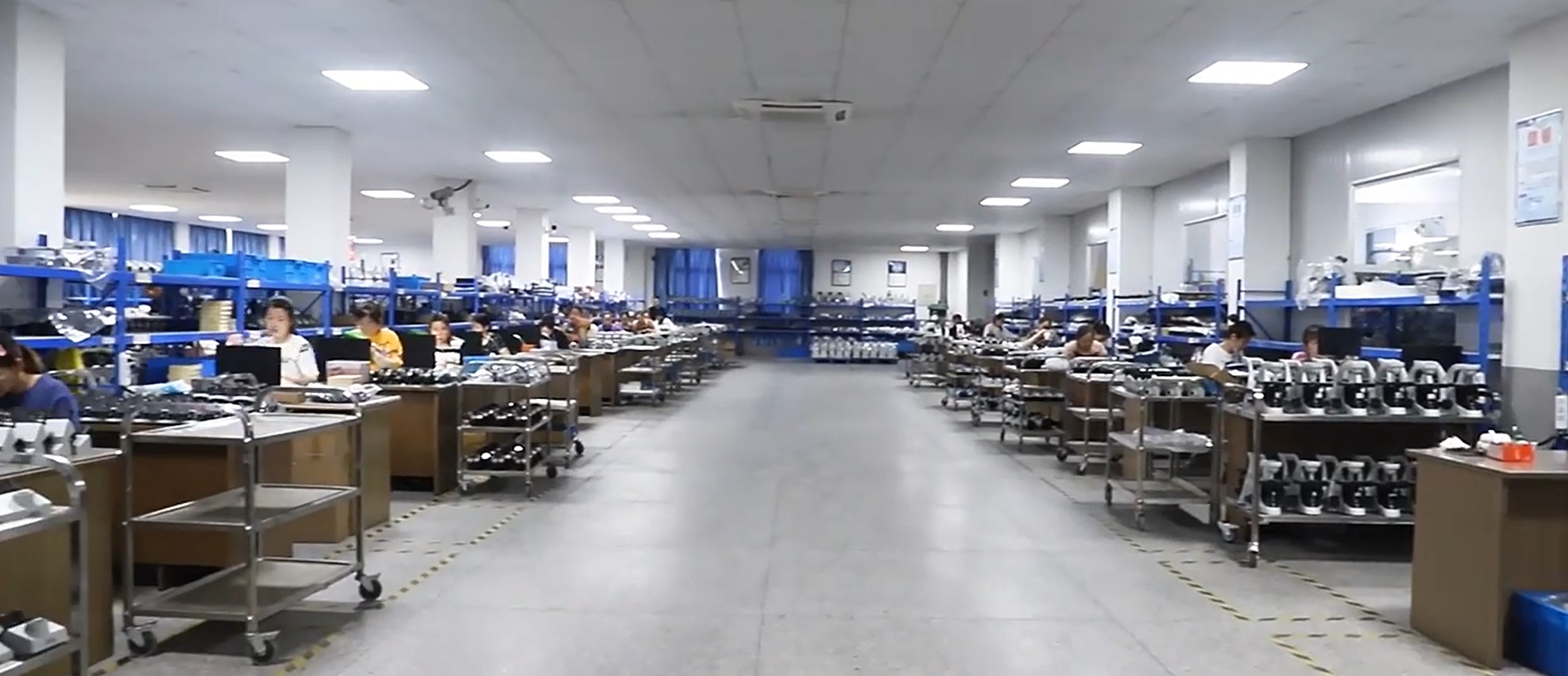

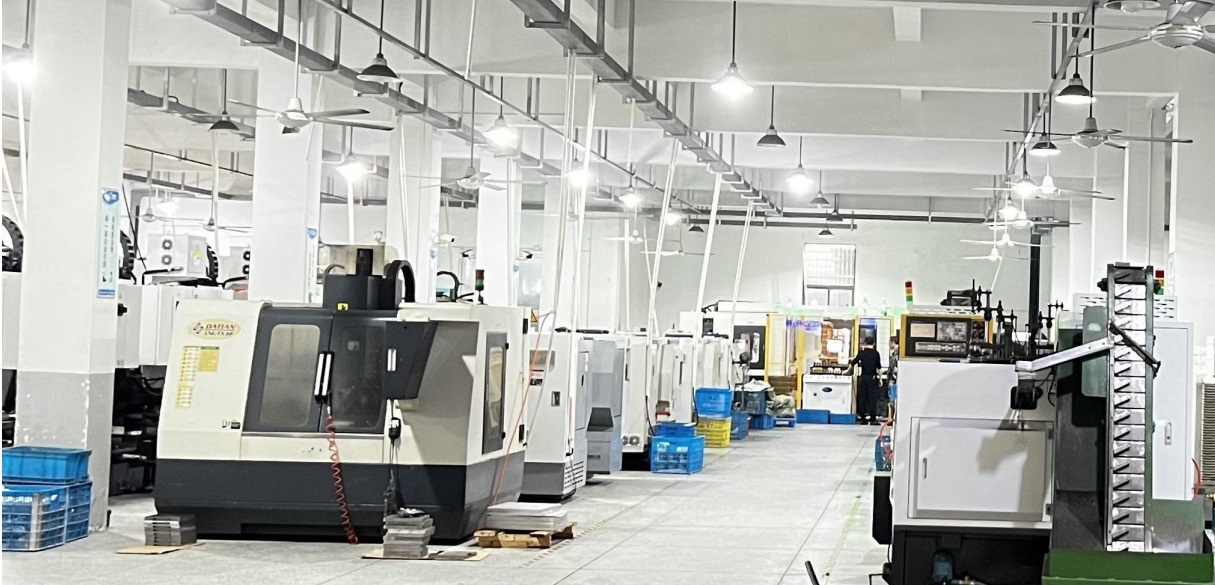

Production Workshop：
