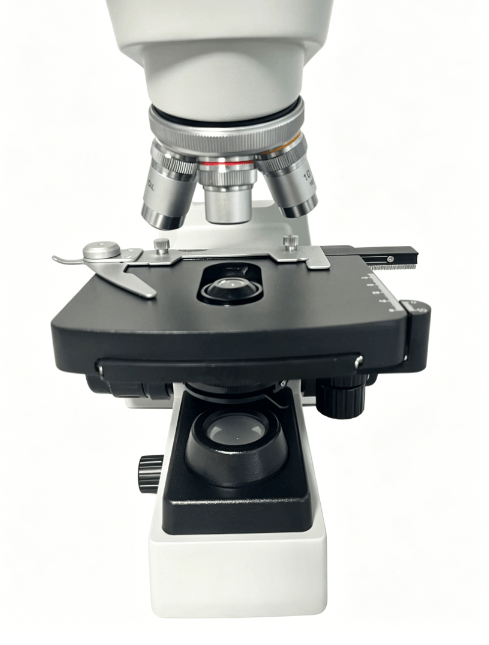

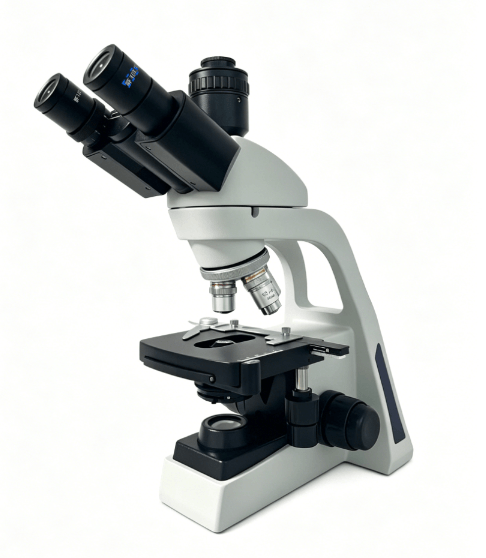

VBM20T Educational Microscopes

Key Features

Up to 1000X Magnification.
Wide-Field Optical System.
Precision Coaxial Focusing.
Mechanical X-Y Stage.
Adjustable LED Illumination.

Request A Quote Back to List

Overview

Specifications

The VBM20T is a compact trinocular biological microscope designed for education, laboratory training, and routine biological observation, delivering clear imaging and reliable performance.

Features：

Up to 1000X Magnification for Diverse Observation Needs.
30° Ergonomic Trinocular Viewing Head.
Wide-Field Optical System for Bright, Clear Images.
High-Precision Coaxial Coarse and Fine Focusing.
Double-Layer Mechanical Stage for Precise Positioning.
N.A. 1.25 Abbe Condenser for Enhanced Contrast.
Adjustable LED Illumination with Cool Light Source.
Compatible with Industrial and Digital Cameras.

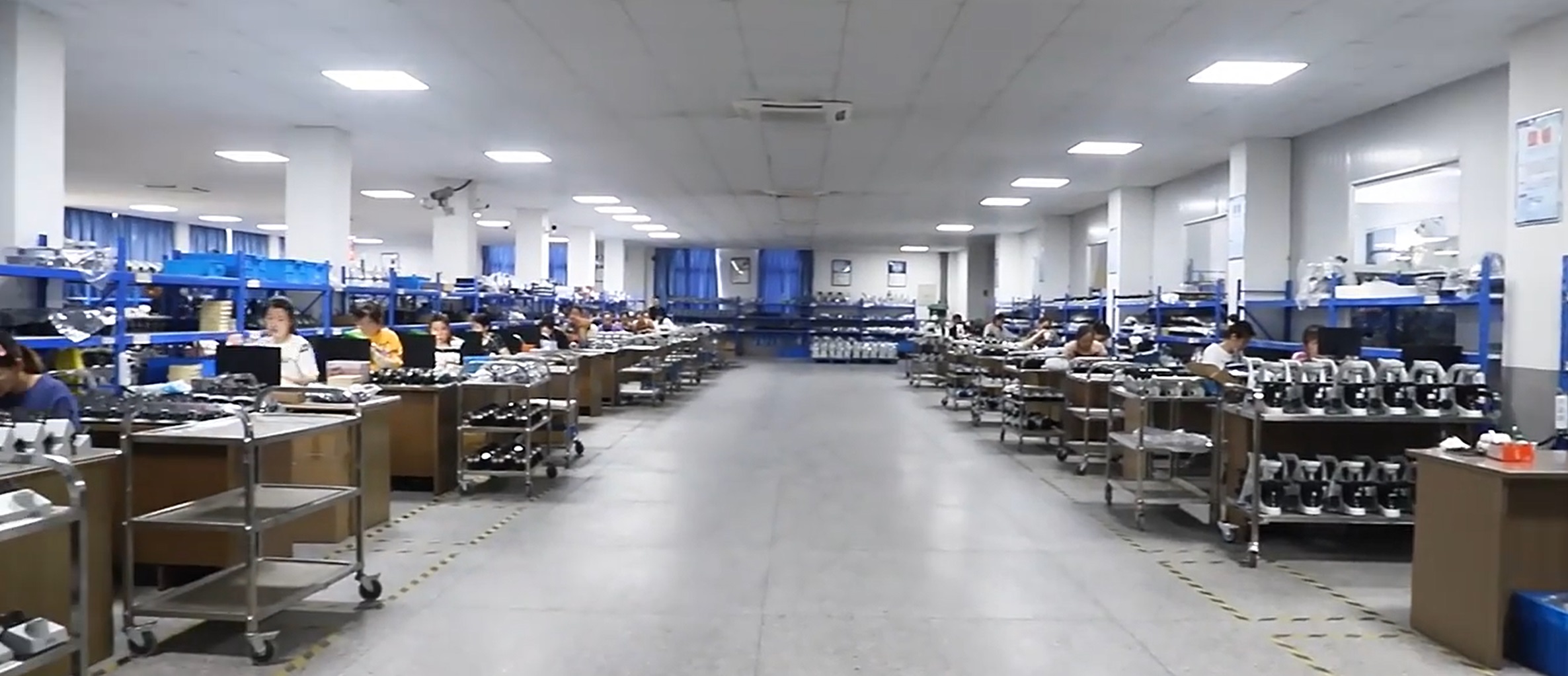

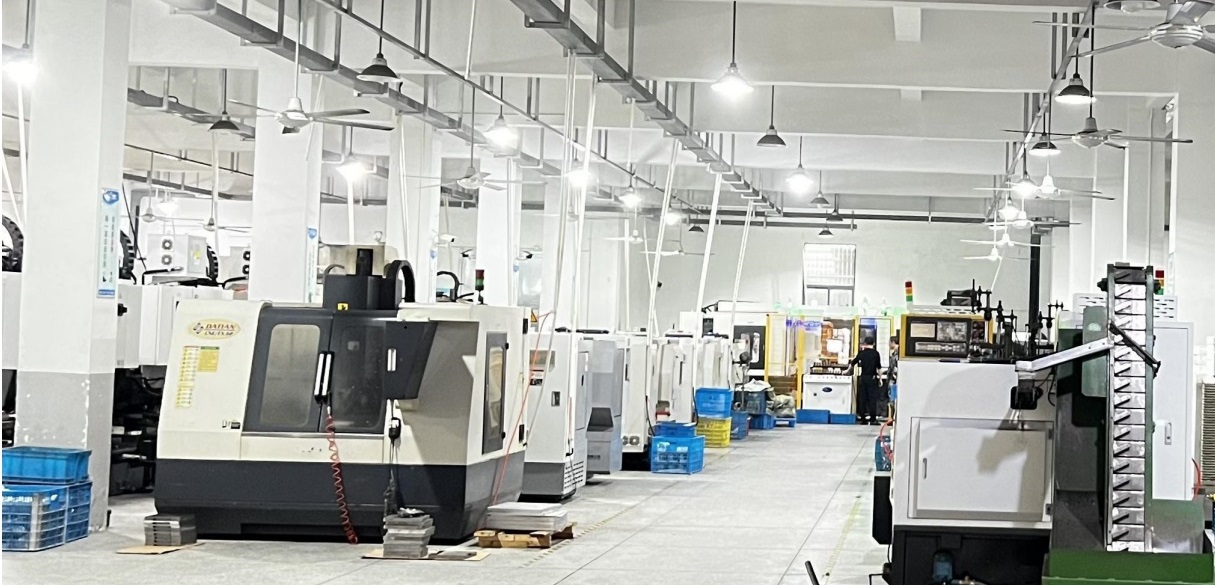

Production Workshop：

Optical System	Finite Color-Corrected Optical System Infinity Color-Corrected Optical System
Viewing Head	30° Inclined Trinocular Head
Interpupillary Distance	50–75 mm
Diopter Adjustment	Single-Side Diopter Adjustment
Eyepiece	WF10X/18 mm Wide-Field Eyepiece
Magnification	40X, 100X, 400X, 1000X
Objectives	4X, 10X, 40X, 100X Achromatic Objectives
Optional Objectives	4X, 10X, 40X, 100X Plan Achromatic Objectives
Nosepiece	Quadruple Nosepiece
Focusing System	Coaxial Coarse & Fine Focus
Focus Travel	8 mm
Fine Focus Precision	0.004 mm
Stage	Double-Layer Mechanical Stage, 115 × 125 mm
Condenser	N.A. 1.25 Abbe Condenser with Iris Diaphragm
Illumination	Adjustable LED Illumination
Power Supply	00–240V AC Input, 5V/1A Output, USB Type-C
Camera Port	0.5X C-Mount Adapter
Optional C-Mount Adapters	0.35X, 0.5X, 1X
